GM E85 Flex Fuel Sensor Connector Pigtail Metal Body Fuel Composition Ethanol
Details

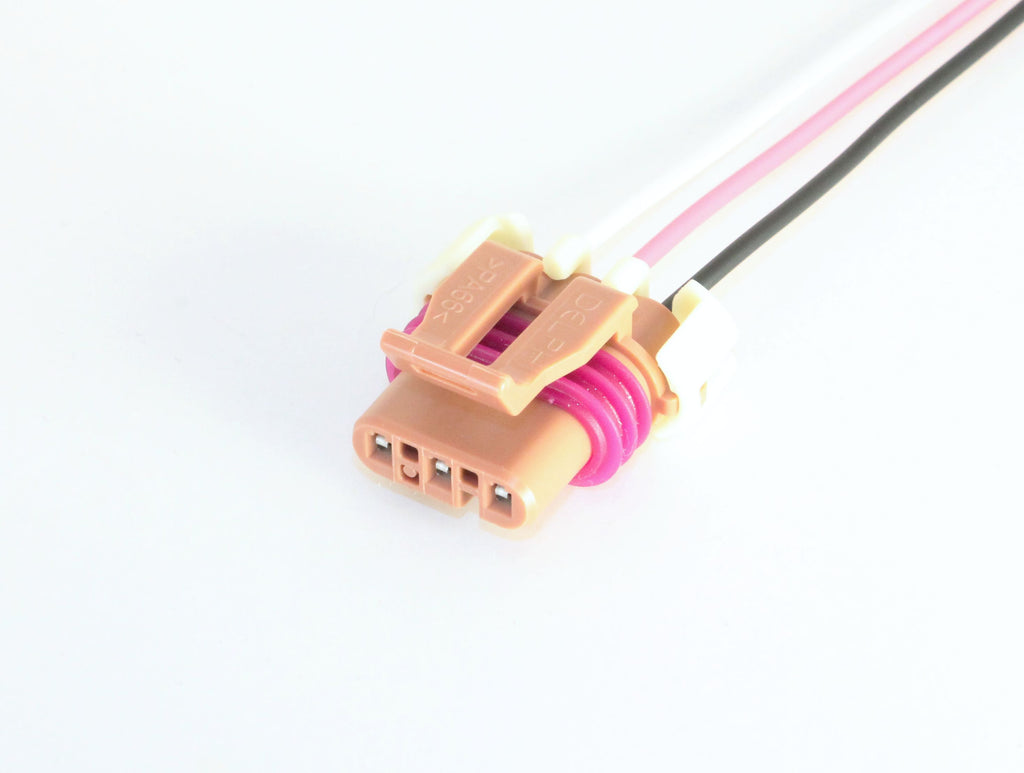

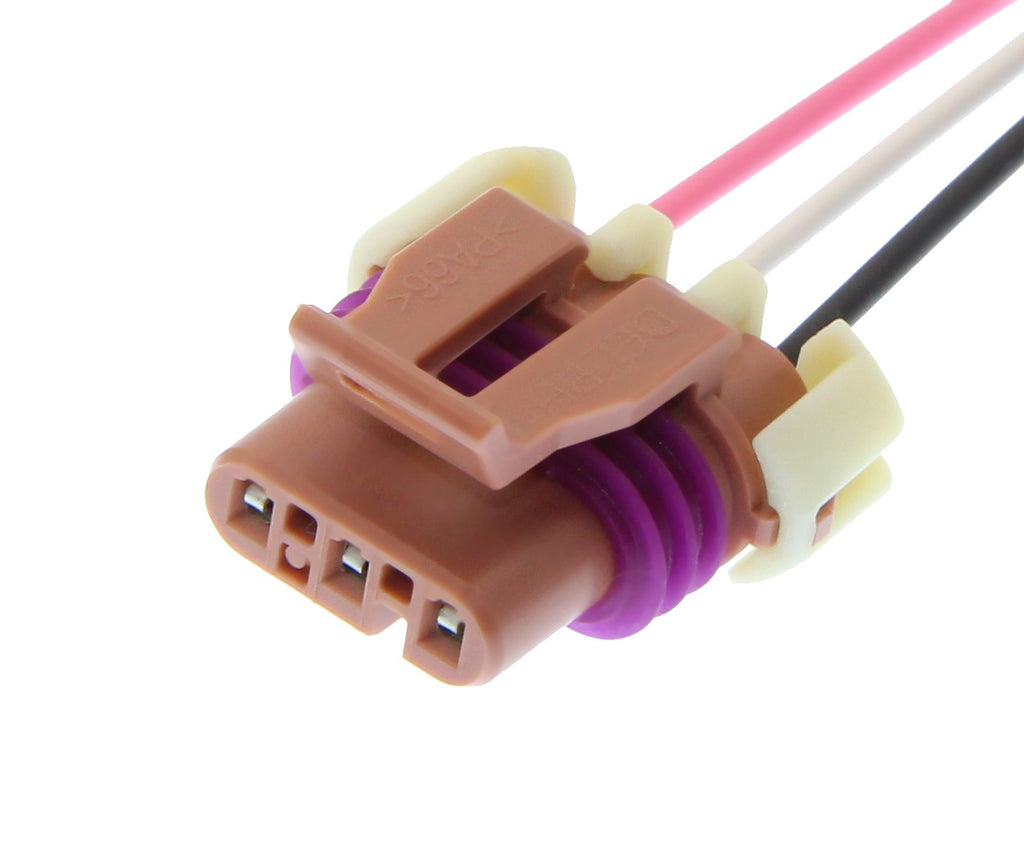

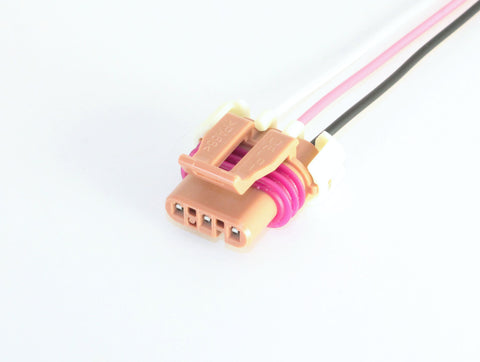

- New E85 Flex Fuel Sensor Connector Pigtail for metal body sensors.
- Uses the same Delphi/Packard connectors, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.

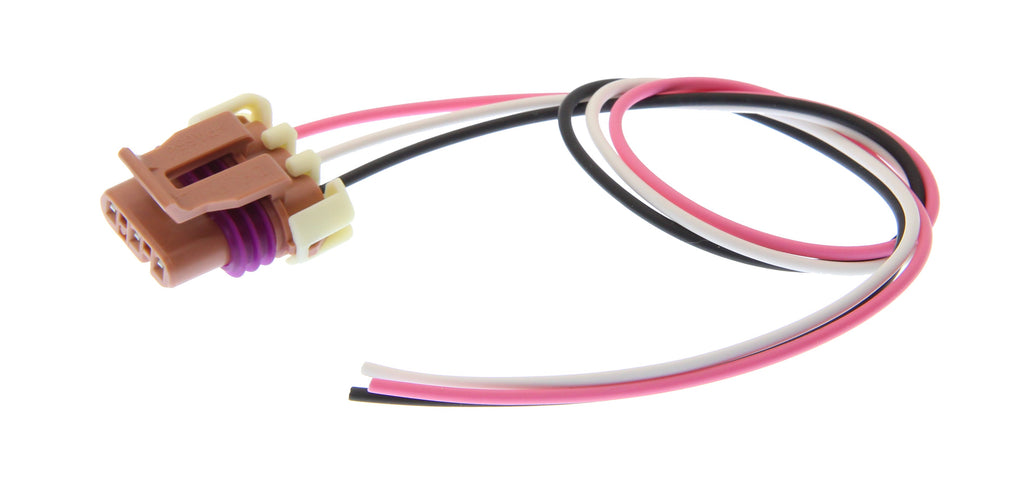

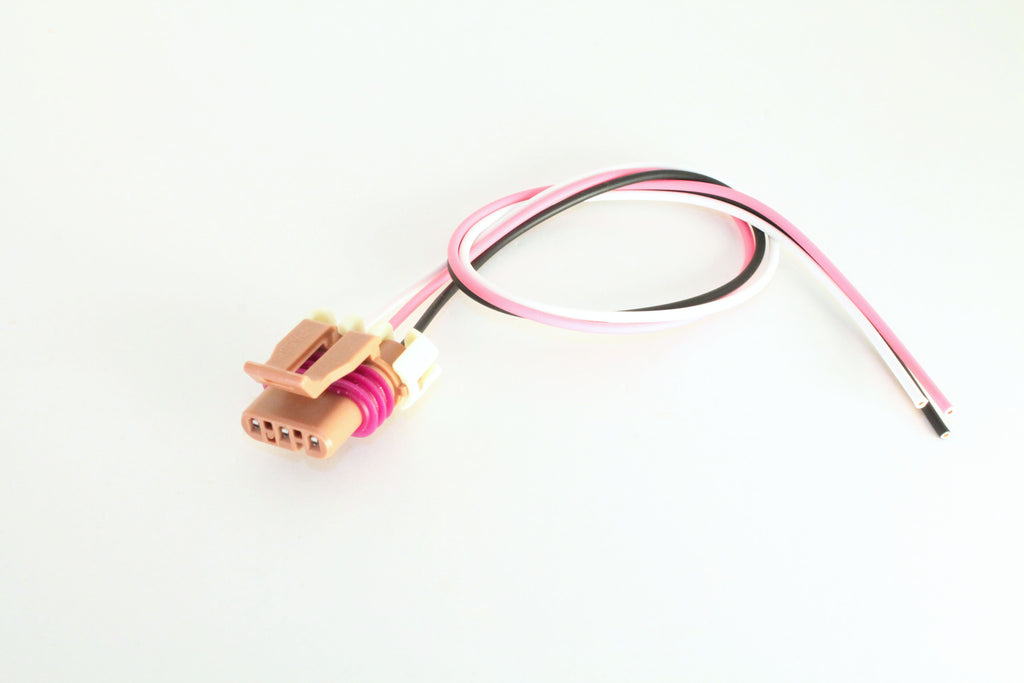

- Approximately 12" long wires.
- EFI Performance Wiring Part # 210-0235
- If you need a longer length or different color wires please email us, we will be happy to build it for you.
Wire Colors
A: White - Ethanol Percentage and Fuel Temp Signal to ECM
B: Pink - 12 V Ignition - Sensor Power
C: Black - Sensor Ground
Application
Fits the following models:
This connector fits the first generation GM E85 metal housing fuel sensors from 2000-2005.
Fits these sensor part numbers : AC Delco & GM # 12570260, 12563553, 10371025
For second generation plastic fuel sensor connector pigtail
look for EFI Performance Wiring Part # 210-0236
