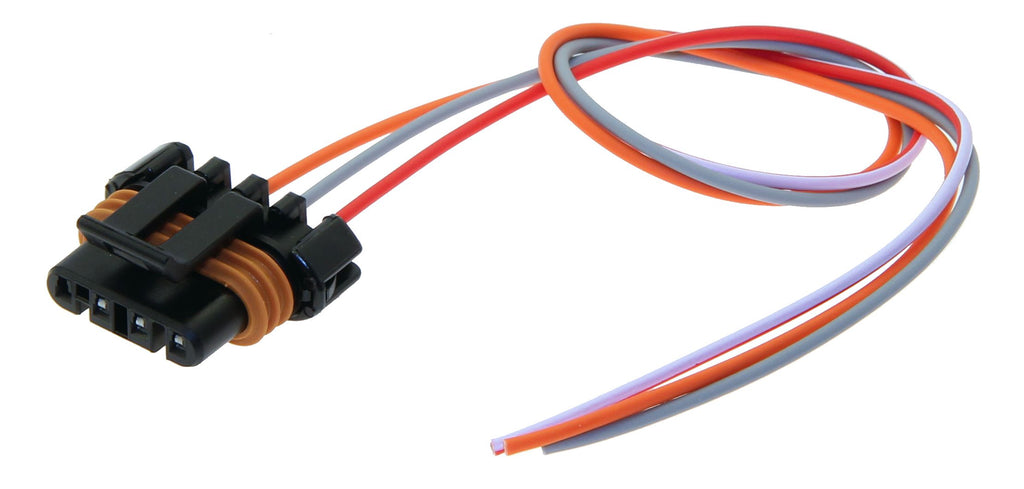

Alternator Generator Pigtail
GM 6.0 LS2 2005-07 Corvette
Assembled using genuine Aptiv/Delphi components (GM Original Equipment)
Details
- EFI Performance Wiring part #210-0330
- New pigtail kit to repair the alternator pigtail for the listed applications.
- Uses the same Aptiv/Delphi connector, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- All terminals crimped using Rennsteig or Delphi production tooling.
- Uses the most common GM color wiring.
- Factory correct parallel striped wire where applicable.
- Long 12" leads from back of connector.
If your application requires different wire colors, please let us know and we will assemble it at no extra charge.

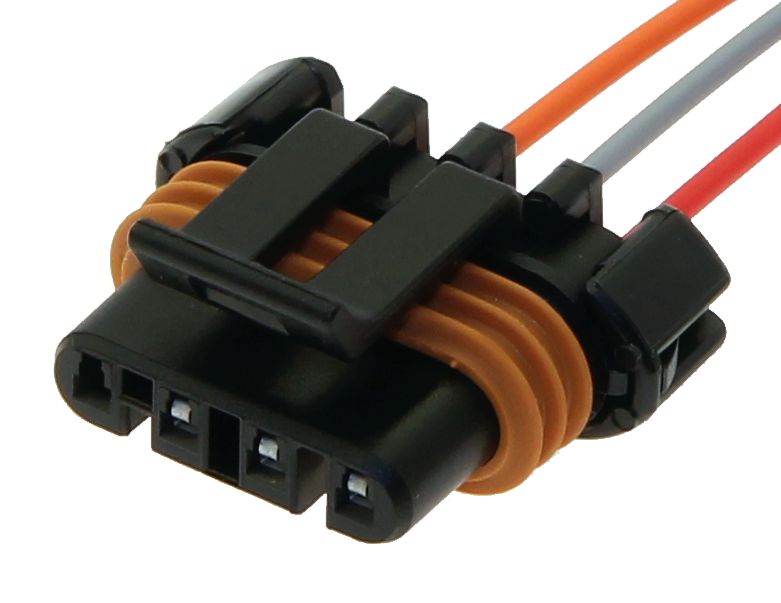

Connector Cavities and Wire
- A: Not Used
- B: 18 Ga Orange
- C: 18 Ga Gray
- D: 18 Ga Red/White Stripe
Application
Fits the following models:
- 2005-07 Chevrolet Corvette with 6.0 LS2 engine
May fit other models as well, please review picture(s).
