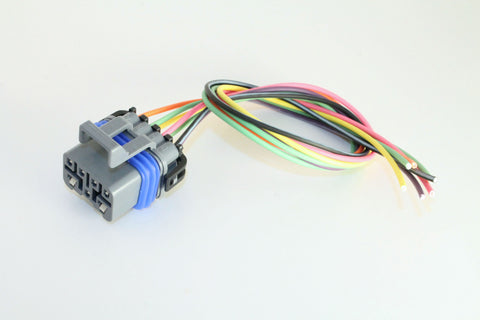

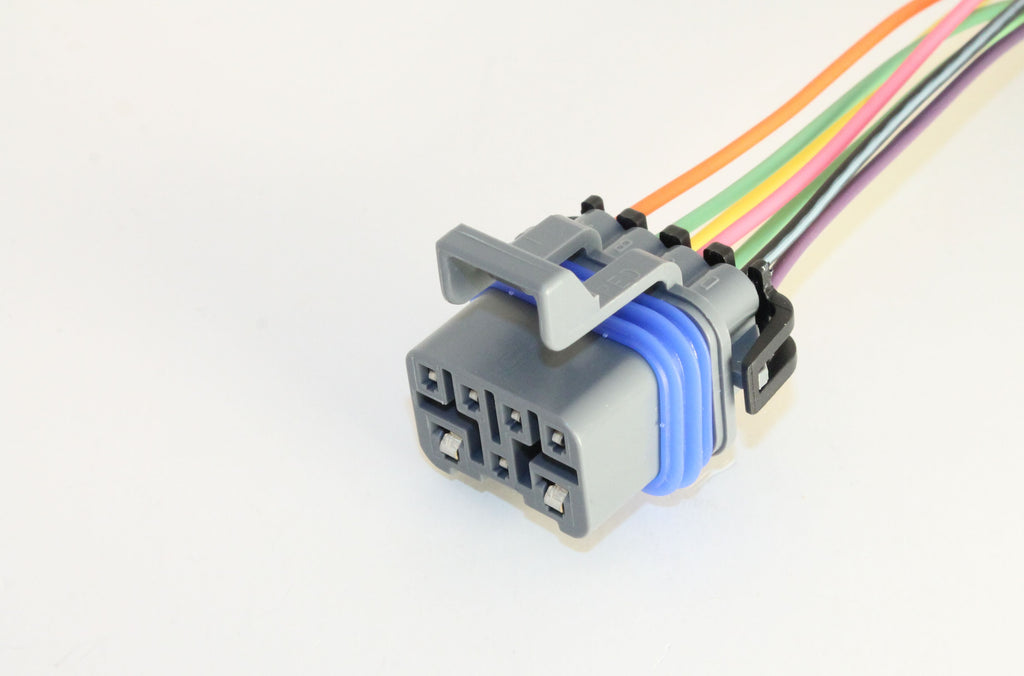

4L60E 4L80E Neutral Safety Switch Connector Pigtail 7 Wire MLPS Range Switch
Details
- New 7 Wire Neutral Safety Switch Connector Pigtail.
- EFI Performance Wiring Part # 210-224
- Interchange Part #s PT1031, PT2369, 15305887, 88862288
- Uses the same Delphi/Packard connectors, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- Approximately 12" long wires.
- Assembled in the United States
- If you need a longer length or different color wires please email us, we will be happy to build it for you.
Wire Colors
A: Orange - P/N Signal
B: Light Green - Park Signal
C: Pink - Ignition Voltage
D: Black with White Stripe - Ground
E: Purple with White Stripe - Starter Relay Supply Voltage
F: Light Green - Back-Up Lamp Supply Voltage
G: Yellow - N/S Signal
Application
Fits the following models:
Fits 1995-2003 4l60E and 4L80E transmissions, Also fits some Allison 1000 and 2000 transmisions.
Many GM and Chevy Trucks from 1995-2003.
Please verify your application, some 1995 models do not have a switch. Some 2003 models use the 2004 and newer switch and connector.
