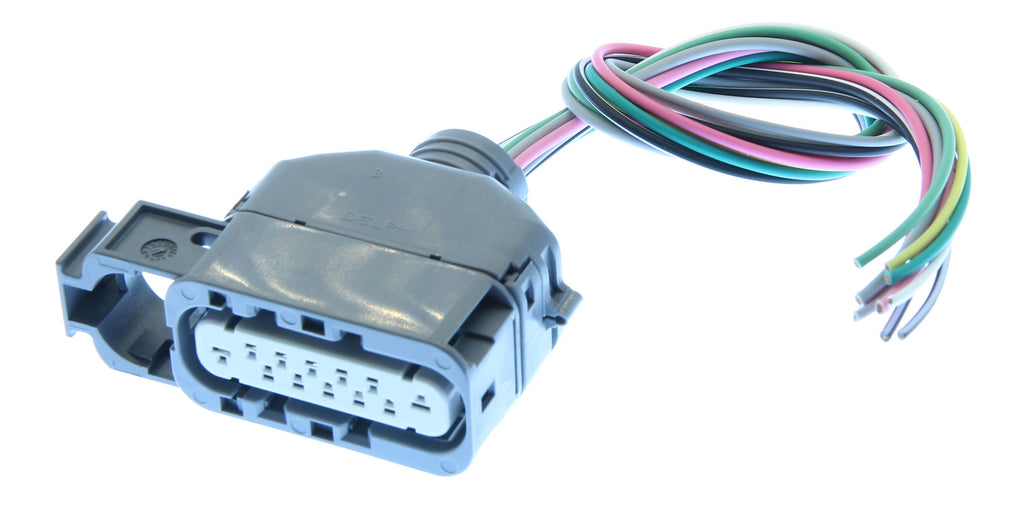

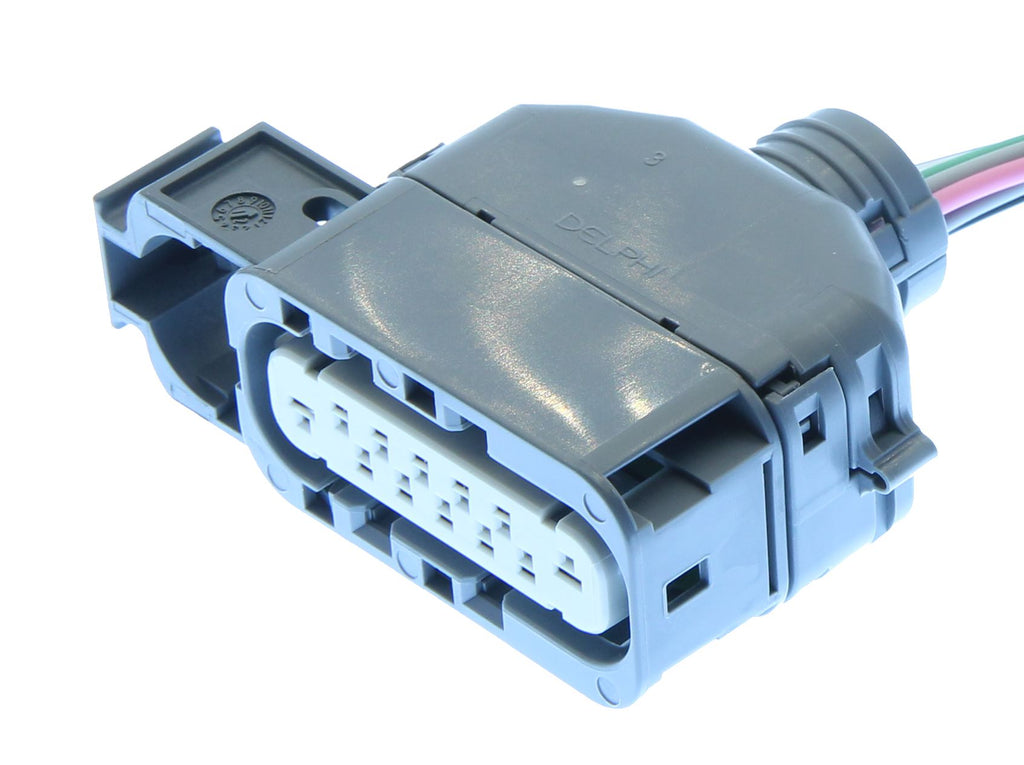

4L60E 4L80E Transmission Range Switch Pigtail GM 6.0L LQ4 2004-08
For GM 6.0L LQ4 2004-08 applications
Built using genuine Delphi Components (GM Original Equipment)
Details
- EFI Performance Wiring part # 210-0245
- New pigtail assembly to repair the Transmission range switch connector for the listed applications.
- Uses the same Delphi/Packard connector, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- Striped wires are factory correct Parallel striped.
- Equivalent to GM 88987526
- Long 12" leads from back of connector.
Connector Cavities and Wire Size/Color
- 1: 18 Gauge Dk Green
- 2: Unused
- 3: Unused
- 4: 20 Gauge Yellow
- 5: 20 Gauge Black/White stripe
- 6: 20 Gauge Gray
- 7: 18 Gauge Black/White stripe
- 8: 20 Gauge White
- 9: 18 Gauge Light Green
- 10: 16 Gauge Gray
- 11: 16 Gauge Pink
- 12: 18 Gauge Pink
If your application requires a different wire color or gauge, please email us in advance and we will let you know if we have the correct color wire in stock.
Application
Fits the following models:
- 2004-2008 GM 6.0L LQ4 with 4L60E and 4L80E applications
May fit other models as well, please review picture(s) and email us to verify.
