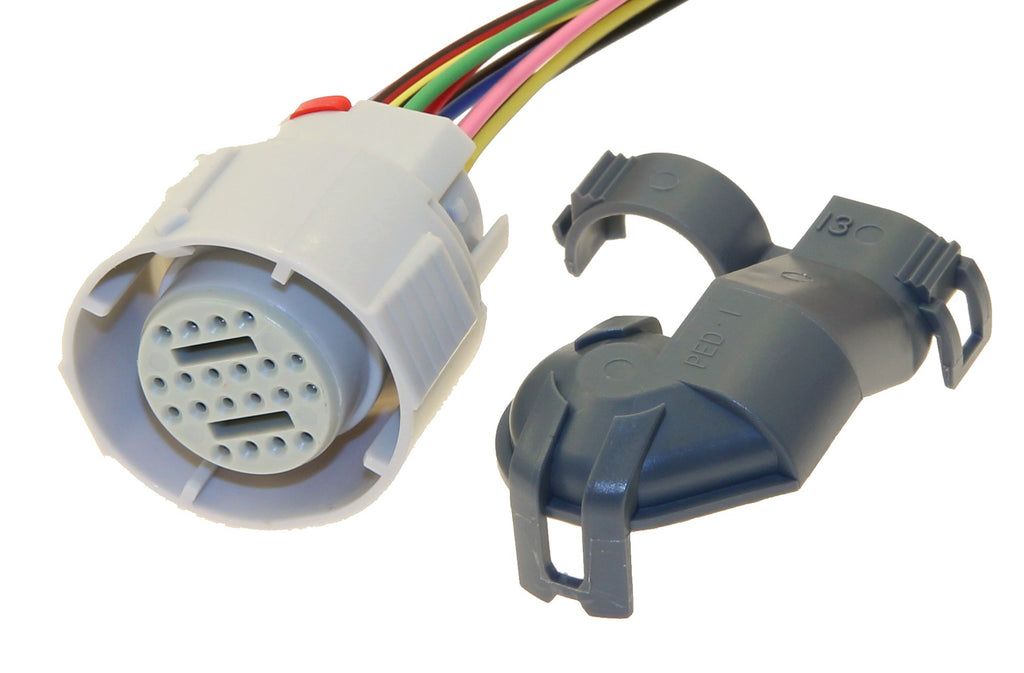

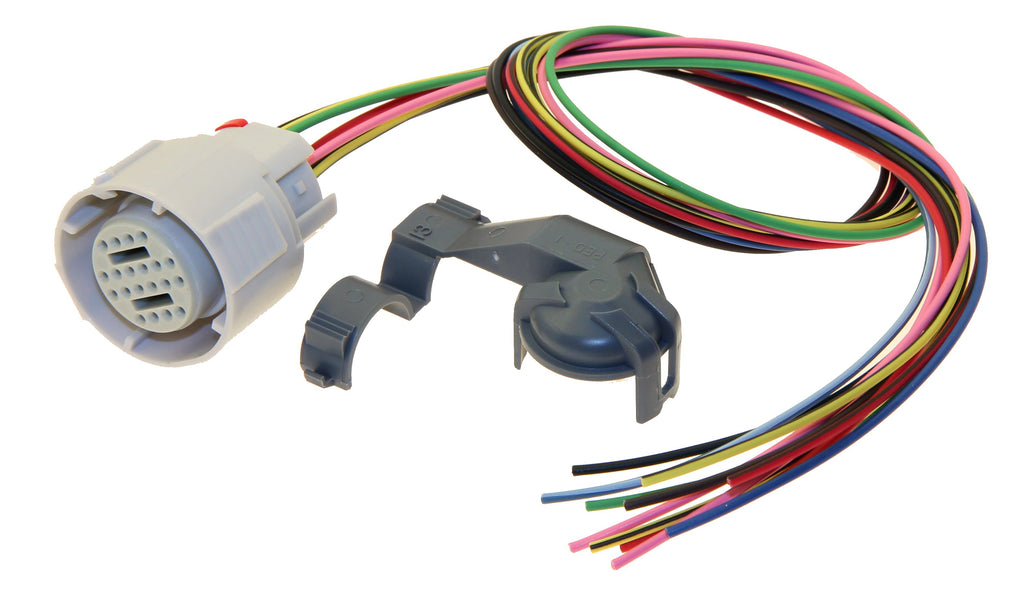

4L80E 4 Speed Automatic Transmission Pigtail
GM 6.0L LQ4 1999-2008
Assembled using Genuine Aptiv/Delphi components (GM Original Equipment)
Details
- EFI Performance Wiring part # 210-0242
- New pigtail assembly to repair the transmission connector on the listed applications.
- Uses the same Aptiv/Delphi connector, terminals, and seals as the factory wiring harness.
- Assembled in our shop using the factory correct cross linked polyethelene high temperature TXL wire in the proper gauge.
- Striped wires are factory correct Parallel striped.
- Long 18" leads from back of connector.
- Includes correct conduit clip for this application.
Connector Cavities and Wire Size/Color
- A: 20 Ga Light Green
- B: 20 Ga Yellow/Black Stripe
- C: 20 Ga Red/Black Stripe
- D: 20 Ga Light Blue/White Stripe
- E: 20 Ga Pink
- L: 20 Ga Yellow/Black Stripe
- M: 20 Ga Gray
- N: 20 Ga Pink
- P: 20 Ga Red
- R: 20 Ga Dark Blue
- S: 20 Ga Brown
Application
Fits the following models:
1998-2008 GM 6.0L LQ4 vehicles with a 4L80E transmission.
